High Precision Inclination Sensor

  Enquiry / contact me

F199 from Pepperl+Fuchs provides an accuracy up to ±0.15° and a shock resistance of 100g, and it can operate from -45 up to +85 °C

Sensor Technology

High Precision Inclination Sensor
High Precision Inclination Sensor
High Precision Inclination Sensor
High Precision Inclination Sensor

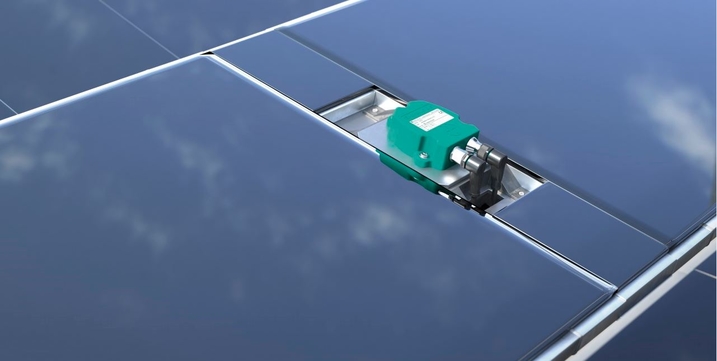

Pepperl+Fuchs has decided to expand its offer of inclination sensors with F199 series, optimised for high-precision inclination measurement. It boasts a rugged design, and it offers wide range of application possibilities, particularly in outdoor areas and harsh environments, for instance it can be used in concentrated solar power (CSP) applications to generate energy from solar heat, since it detects the inclination angles of the mirrors. F199 has a temperature range from -45 up to +85 °C.

Inclination sensor with accuracy up to ±0.15° and shock resistance of 100g

F199 measures inclination precisely across the entire measuring range of 0° to 360° and along both axes with an accuracy of up to ±0.15°. Thanks to this capability and its extremely robust design, which provides protection to IP 68/69, the F199 can cover a much wider range of applications, particularly in outdoor areas and harsh environments. While the company’s existing inclination sensors are based on a two-part design, with its metal mounting bracket for additional protection, F199 consists of just one part. It has corrosion-resistant aluminium housing, encapsulated electronics and a shock resistance of 100 g.



Please visit us at Hannover Messe 2019: Hall 9 / Booth D76

Posted on February 19, 2019 - (521 views)
