Inductive Displacement Measuring System

  Enquiry / contact me

More flexibility with new measuring ranges of 6 and 8 mm

Test & Measurement

Inductive Displacement Measuring System
Inductive Displacement Measuring System

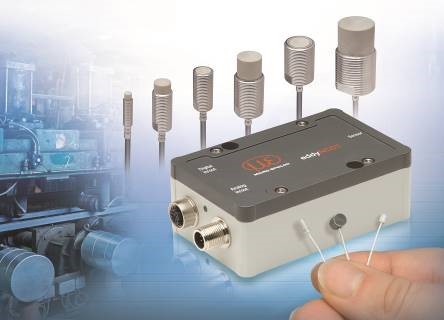

The eddyNCDT 3060 displacement measuring system from Micro-Epsilon has been enhanced with new measuring ranges of 6 and 8 mm, offering more flexibility. This opens up new fields of application in a wide range of industry domains.

With its new measuring ranges, the eddyNCDT 3060 displacement measuring system thus helps solve new, demanding measurement tasks in industrial processes with the highest precision. The sensor portfolio, which is compatible with the controller, now comprises more than 400 models.

Measurement features and high accuracy

The eddyNCDT 3060 combines precision, high speed and temperature stability. This system's measurement tasks comprise precise gap monitoring, determination of shaft movements and monitoring the radial run out of machine parts and drive components.

The 5-point linearization, which is possible using the DT3061 controller, allows higher measurement accuracy. Moreover, the DT3061 provides switching and temperature outputs and enables the storage of multiple characteristic curves. Parameter set up is performed via a modern, user-friendly web interface that is accessed via an Ethernet interface.

Posted on June 22, 2021 - (152 views)
