For use with their versatile portfolio of encoders and sensors Lika Electronics offers the LD multi-function displays. They feature a 7-segment graphic display with a touchscreen and a comprehensive set of plain text, symbols, and units. The LED display is bright and offers high-contrast readability. Additionally, the backlight can change to red, green, or yellow in response to specific events (for example, it can turn red when threshold limits are exceeded). The combination of plain text and touchscreen functionality makes parametrization very user-friendly and intuitive. The devices have an IP65 rating.
Versatile options

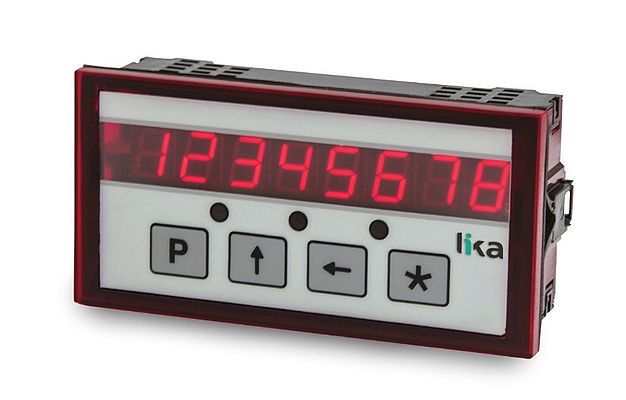

The series offers a wide range of different options to interface with different encoder types. The highlight is the LD200 universal display, which offers the maximum versatility and is perfect for e.g. encoder test tables. The LD200 can interface with a variety of encoder types, both rotary and linear, including Push-Pull, Line Driver, Sin/Cos 1Vpp, and SSI outputs.
The user interface features a scratch-resistant polycarbonate keypad with four multi-function keys and a high-brightness, eight-character seven-segment display capable of showing both positive and negative values. The front panel also includes three LEDs for information and diagnostic purposes. The LD200 offers one digital input and three digital outputs for zero setting and limit switch functions. Several display modes can be selected, including millimeters, inches, fractional inches, and degrees of rotation, as well as absolute or relative display. The menus allow the user to configure various functions, such as scaling, zero setting, counting direction, decimal point placement, safety limit switch, output code, and more. The LD200 is also equipped with an RS-232 port for communication with a PC.
